Waste Gas Treatment Equipment

The waste gas treatment equipment produced by the company includes absorption towers, scrubbing towers, deodorizing towers, drying towers, etc.It has a service life of over 10 years under harsh conditions and low maintenance costs. After continuous improvement, the technical indicators have reached the international leading level and have the following advantages:

  • The purification efficiency can reach over 95%;
  • It has strong corrosion resistance and is durable;
  • It has low noise and no rotating parts;
  • The wind resistance is small, generally ranging from 200 to 300 Pa (20 to 30 millimeters of water column);
  • It is lightweight and small in size.
Quote Now






    LinkedIn
    Instagram
    YouTube

    Waste Gas Treatment Equipment

    Type Outline Dimension
    φ×HMM
    Volume of Cleaned Gas
    m 3/h
    Resistance Loss
    Pa
    New Water Replenishment Volume
    m3/h
    Re-Circulated Water Volume
    m3/h
    A800 800×5000 2200~3500 200~300 0.35~0.5 8
    A1000 1000×5000 3500~5500 200~300 0.5~0.9 8
    A1200 1200×5000 5500~8000 200~300 0.9~1.4 14
    A1600 1600×6000 8000~12000 200~300 1.4~1.8 18
    A2000 2000×6000 12000~20000 200~300 1.8~3.0 33
    A2500 2500×6000 20000~30000 200~300 3.0~4.8 50
    A3000 3000×6800 30000~40000 200~300 4.8~6.0 60

    Check out our factory information to learn more about us.

    Contact us as soon as possible to obtain real-time quotations.

    Keep abreast of the latest information about TYIC.

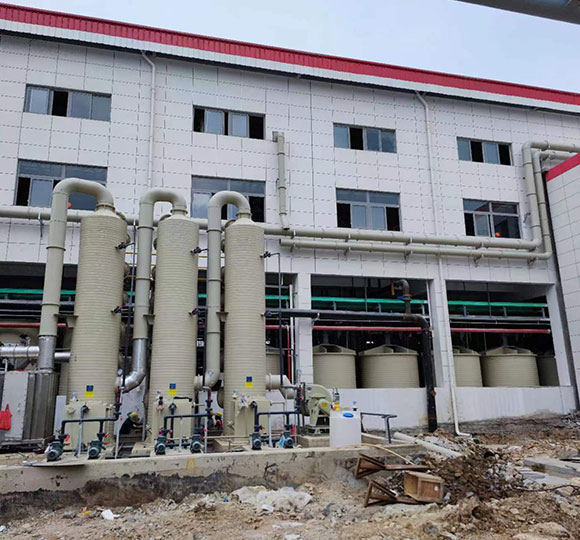

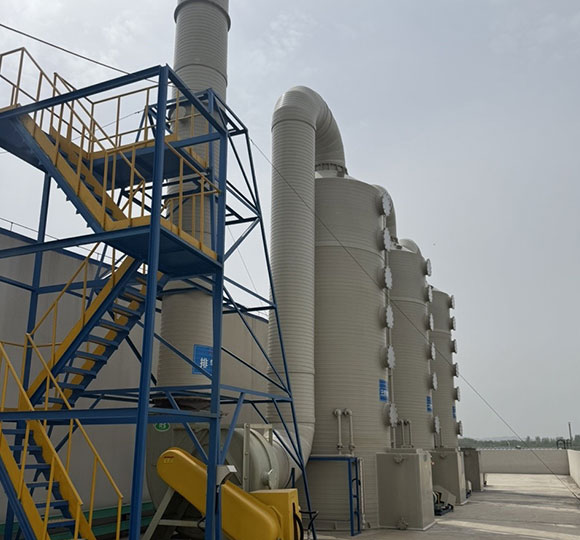

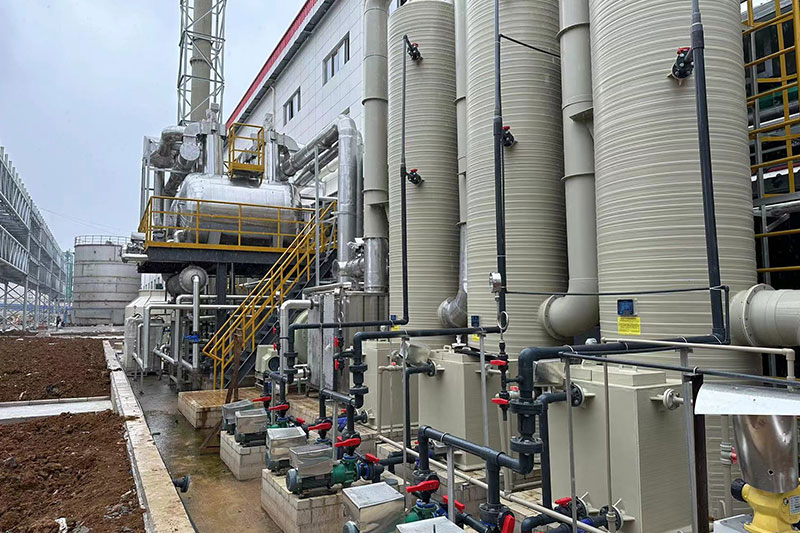

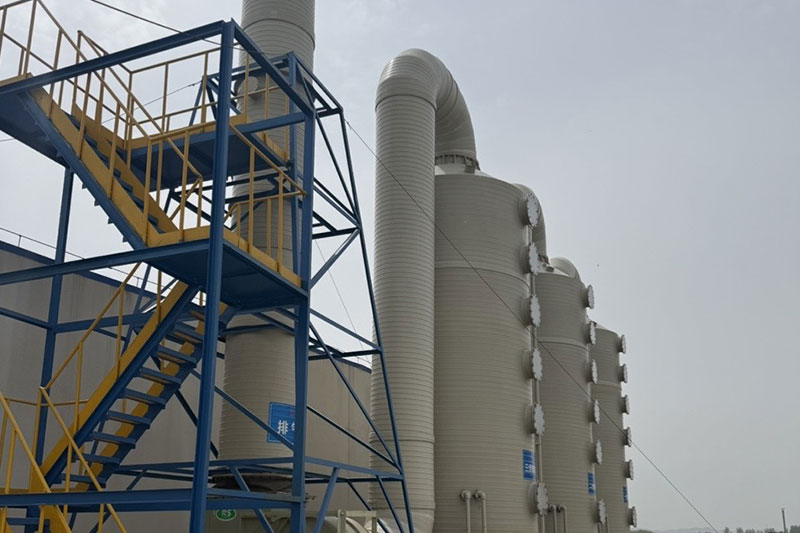

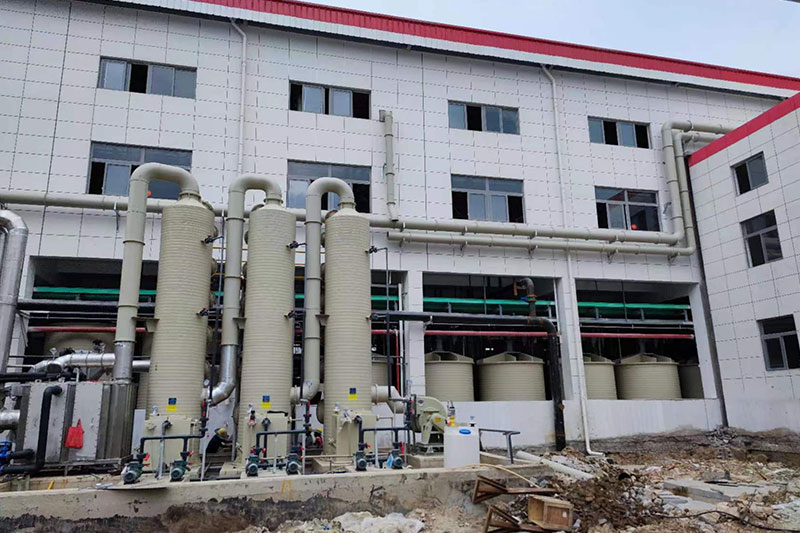

    Application Case

    FAQ

    A:

    • Adsorption method: Activated carbon/resin adsorption (suitable for VOCs and low-concentration organic waste gas).
    • Scrubber tower: Acid-base neutralization/oxidation reaction (suitable for acidic gases, Cl₂, SO₂, etc.).

    A:Chemical industry: Treatment of acid mist, hydrocarbons, and organic phosphoric VOCs.

    A:VOCs removal rate: ≥90% (adsorption method).

    Emission concentration:Non-methane total hydrocarbons (NMHC) ≤50 mg/m³ (national standard).

    A:Explosion-proof certificationEx d IIB T4 explosion-proof grade (suitable for petrochemical and painting industries).

    Explosion relief panels + flame arresters (prevent backfire).

    oncentration monitoring interlock system (automatic shutdown when waste gas concentration exceeds the limit).
